  • 6SL3210-1PB13-0UL0

›

6SL3210-1PB13-0UL0

Article Number (Market Facing Number) 6SL3210-1PB13-0UL0

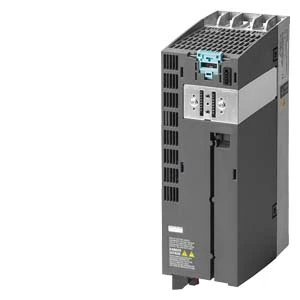

Product Description SINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 200-240 V 1/3AC+10/-10% 47-63Hz Power high overload: 0.37kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 °C, power low overload: 0.55kW at 150% 3s, 110% 57s, 100% 240S Ambient temperature -10 to +40 °C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6


Contact Us

Why Choose Us

———

Profession

The company has a complete product line, including providing a wide range of industrial automation brand accessories

Experience

12 years of sales and distribution experience

Services

Focused on supplying products from world-renowned brands

Technical Support

We sell spare parts with one year warranty, which are rigorously tested and certified.

Product
Article Number (Market Facing Number)6SL3210-1PB13-0UL0
Product DescriptionSINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 200-240 V 1/3AC+10/-10% 47-63Hz Power high overload: 0.37kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 °C, power  low overload: 0.55kW at 150% 3s,  110% 57s, 100% 240S Ambient temperature -10 to +40 °C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group338 / 338
List PriceShow prices
Customer PriceShow prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)3 Day/Days
Net Weight (kg)1,400 Kg
Packaging Dimension90,00 x 185,00 x 280,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948666210
UPC887621830731
Commodity Code85044095
LKZ_FDB/ CatalogIDD11.1SD
Product Group9772
Group CodeR220
Country of originGreat Britain
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidatesLead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number5f41d62a-890c-40a9-b2ff-73269ee78855
Classifications
 VersionClassificationeClass1227-02-31-01eClass1427-02-31-01eClass627-02-31-01eClass7.127-02-31-01eClass827-02-31-01eClass927-02-31-01eClass9.127-02-31-01ETIM7EC001857ETIM8EC001857ETIM9EC001857IDEA44139UNSPSC1539-12-10-07
