  • 6SL3210-1KE11-8UP2

›

6SL3210-1KE11-8UP2

Article Number (Market Facing Number) 6SL3210-1KE11-8UP2

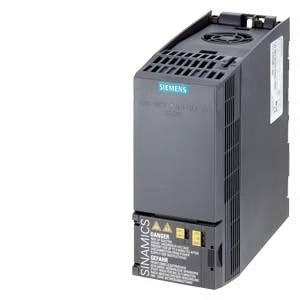

Product Description SINAMICS G120C rated power 3AC380-480V +10/-20% 47-63Hz low overload: 0,55kW at 150% 3s, 110% 57s, 100% 240s high overload: 0,37kW at 200% 3s, 150% 57s, 100% 240s unfiltered external 24V I/O interface: 6DI, 2DO,1AI,1AO, 1Mot_t Safe Torque Off integrated Fieldbus: PROFIBUS-DP Protection: IP20/ UL OPEN TYPE Size: FSAA 173X73X155(HXWXD)

Product family Ordering Data Overview

Product Lifecycle (PLM) PM300:Active Product


Contact Us

Why Choose Us

———

Profession

The company has a complete product line, including providing a wide range of industrial automation brand accessories

Experience

12 years of sales and distribution experience

Services

Focused on supplying products from world-renowned brands

Technical Support

We sell spare parts with one year warranty, which are rigorously tested and certified.

Product
Article Number (Market Facing Number)6SL3210-1KE11-8UP2
Product DescriptionSINAMICS G120C rated power 3AC380-480V +10/-20%  47-63Hz low overload: 0,55kW at 150% 3s, 110% 57s, 100% 240s high overload: 0,37kW at 200% 3s, 150% 57s, 100% 240s unfiltered external 24V I/O interface: 6DI, 2DO,1AI,1AO, 1Mot_t Safe Torque Off integrated Fieldbus: PROFIBUS-DP Protection: IP20/ UL OPEN TYPE Size: FSAA 173X73X155(HXWXD)
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group340 / 340
List PriceShow prices
Customer PriceShow prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Estimated dispatch time (Working Days)3 Day/Days
Net Weight (kg)1,100 Kg
Packaging Dimension270,00 x 225,00 x 85,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948668689
UPC804766249501
Commodity Code85044085
LKZ_FDB/ CatalogIDD11.1SD
Product Group5673
Group CodeR220
Country of originGreat Britain
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidatesLead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):4,4'-isopropylidenediphenol (Bisphenol A, BPA)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Diboron trioxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number38298a69-1ad9-4f1f-a8df-8d57835d7010
Classifications
 VersionClassificationeClass1227-02-31-01eClass1427-02-31-01eClass627-02-31-01eClass7.127-02-31-01eClass827-02-31-01eClass927-02-31-01eClass9.127-02-31-01ETIM7EC001857ETIM8EC001857ETIM9EC001857IDEA44139UNSPSC1539-12-10-07
