  • 6SL3225-0BE31-5UA0

›

6SL3225-0BE31-5UA0

Article Number (Market Facing Number) 6SL3225-0BE31-5UA0

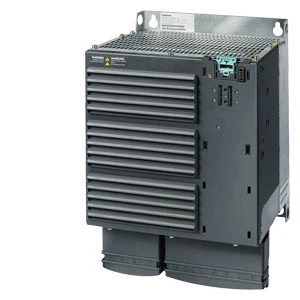

Product Description SINAMICS G120 POWER MODULE PM250 WITHOUT FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP


Contact Us

Why Choose Us

———

Profession

The company has a complete product line, including providing a wide range of industrial automation brand accessories

Experience

12 years of sales and distribution experience

Services

Focused on supplying products from world-renowned brands

Technical Support

We sell spare parts with one year warranty, which are rigorously tested and certified.

Product
Article Number (Market Facing Number)6SL3225-0BE31-5UA0
Product DescriptionSINAMICS G120 POWER MODULE PM250 WITHOUT FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 18,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group339 / 339
List PriceShow prices
Customer PriceShow prices
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)30 Day/Days
Net Weight (kg)13,000 Kg
Packaging Dimension400,00 x 510,00 x 310,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4019169457903
UPC040892784152
Commodity Code85044086
LKZ_FDB/ CatalogIDD11.1SD
Product Group9784
Group CodeR220
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 11.05.2016
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidatesLead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Diboron trioxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
SCIP number1b47fc99-5ebf-4517-b605-da5da58e30d3
Classifications
 VersionClassificationeClass1227-02-31-01eClass1427-02-31-01eClass627-02-31-01eClass7.127-02-31-01eClass827-02-31-01eClass927-02-31-01eClass9.127-02-31-01ETIM7EC001857ETIM8EC001857ETIM9EC001857IDEA44139UNSPSC1539-12-10-07
