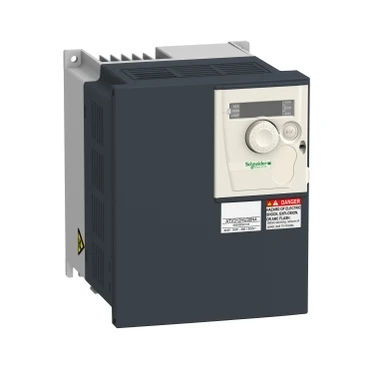

Product series

Altivar 312

product type

frequency converter

Product application scenarios

Asynchronous motor

application area

Simple Machinery

Assembly method

Equipped with heat sink

component Name

ATV312

Electric motor power (kW)

2.2 kW

Motor Power

3 hp

Rated power supply voltage [Us]

200...240 V - 15...10 %

Power supply frequency

50...60 Hz - 5...5 %

Number of phases in the power grid

single phase

line current

21.9 A on... 200 V, Isc=1 kA

18.4 A on... 240 V

EMC filter

integrated

apparent power

4.4 kVA

Maximum transient current

16.5 A is suitable for 60 seconds

Power consumption W

123 W rated load current

Speed range

1…50

Asynchronous motor control configuration file

Sensorless flux vector control using PWM motor control signal

Factory settings: Constant torque

Electrical connection

Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1... LI6 terminals 2.5 mm ² AWG 14

L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- Terminal 5 mm ² AWG 10

power supply

Internal power supply for logic input: 19... 30 V<100 mA on..., protection type: overload and short circuit protection

Internal power supply for reference potentiometer (2.2 to 10 kOhm): 10... 10.8 V<10 mA on..., protection type: overload and short circuit protection

Communication Port Protocol

CANopen

Serial port Modbus

IP protection level

IP20 does not have a cover plate on the upper components

IP21 at the connection terminal

IP31 in the upper component

IP41 in the upper component

tab

Communication card compatible with CANopen daisy chain

Communication card compatible with DeviceNet

Communication card compatible with Fipio

Communication card compatible with Ethernet Modbus

The communication card is compatible with Profibus DP
