Product series

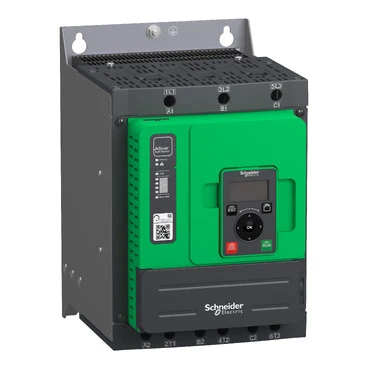

Altivar Soft Starter ATS480

product type

soft starter

Product application scenarios

Asynchronous motor

application area

Process and infrastructures

Product short name

ATS480

Number of phases in the power grid

3 phases

Utilization category

AC-3A

AC-53A

Ue power supply voltage

208...690 V - 15...10 %

power supply frequency

50...60 Hz - 20...20 %

Rated working current [Ie]

Normal duty: 62.0 A 40 °C)

rated current in heavy duty

47.0 A at 40 ° C suitable for heavy duty

Torque control

True

IP rating

IP20

Electric motor power (kW)

15.0 kW motor power line standard load for 230 V on

11.0 kW with 230 V motor power line overload on

30.0 kW motor power line standard load for 400 V on

22.0 kW with 400 V motor power line overload on

30.0 kW motor power line standard load for 440 V on

22.0 kW on... 440 V motor power line overload

37.0 kW standard load on 500 V motor power cord for

30.0 kW on... 500 V motor power line overload

37.0 kW standard load on 525 V motor power cord for

30.0 kW with 525 V motor power line overload on

45.0 kW standard load on 660 V motor power cord for

37.0 kW with 660 V motor power line overload on

45.0 kW motor power line standard load for 690 V on

37.0 kW on... 690 V motor power line overload

30.0 kW on... 230 V to motor triangle terminal standard load

22.0 kW on... 230 V to motor triangle terminal overload

55.0 kW on... 400 V to motor triangle terminal standard load

45.0 kW on... 400 V to motor triangle terminal overload

Motor Power

15.0 hp on... 208 V standard load

20.0 hp on... 230 V standard load

15.0 hp on... 230 V heavy load

40.0 hp on... 460 V standard load

30.0 hp on... 460 V heavy load

50.0 hp on 575 V standard load

40.0 hp on... 575 V overload

tab

The communication module is compatible with Profibus DP V1

The communication module is compatible with Modbus TCP/Ethernet/IP

Communication module compatible with CANopen daisy chain

The communication module is compatible with CANopen Sub-D

The communication module is suitable for CANopen open type
