Rated Operational Voltage:

208 ... 600 V AC

Rated Control Supply Voltage (Us):

100 ... 240 V AC

Rated Control Circuit Voltage (Uc):

24 V DC

Rated Frequency (f):

50/60 Hz

Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe):

(230 V) 30 kW

(400 V) 55 kW

(500 V) 55 kW

Rated Operational Current - In-Line Connection (Ie):

105 A

Service Factor Percentage:

100 %

Overload Protection:

Recommended MS495 80 ... 100

Integrated Electronic Overload:

No

Starting Capacity at Maximum Rated Current Ie:

4xIe for 6s

Ramp Time:

0 ... 20 second [unit of time]

1 ... 10 second [unit of time]

Initial Voltage During Start:

40 ... 70 %

Step Down Voltage Special Ramp:

100 ... 60 %

Current Limit Function:

No

Switch for Inside Delta Connection:

No

Run Signal Relay:

Yes

By-pass Signal Relay:

Yes

Fault Signal Relay:

No

Overload Signal Relay:

No

Signal Indication Completed Start Ramp (LED):

Green

Signal Indication Ready to Start/Standby ON (LED):

Green

Signal Indication Running R (LED):

Green

Signal Indication Ramping Up/Down (LED):

Green

Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:

10

Communication:

FiledBusPlug(Optional)

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Terminal Type:

Main Circuit: Bars

Connecting Capacity Main Circuit:

Rigid 1x 10 ... 95 mm²

Rigid 2 x 6 ... 35 mm²

Connecting Capacity Control Circuit:

1 x 0.75 ... 2.5 mm²

2 x 0.75 ... 2.5 mm²

Rigid 1 x 0.75 ... 2.5 mm²

Rigid 2 x 0.75 ... 1.5 mm²

Connecting Capacity Supply Circuit:

Rigid 1 x 0.75 ... 2.5

Tightening Torque:

Control Circuit 0.6 N·m

Main Circuit 8 N·m

Supply Circuit 0.6 N·m

Product Main Type:

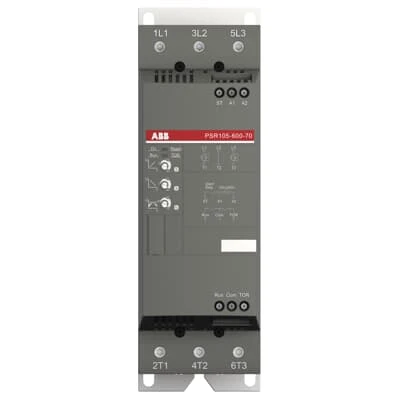

PSR105

Function:

Soft start with voltage ramp

Soft stop with voltage ramp
